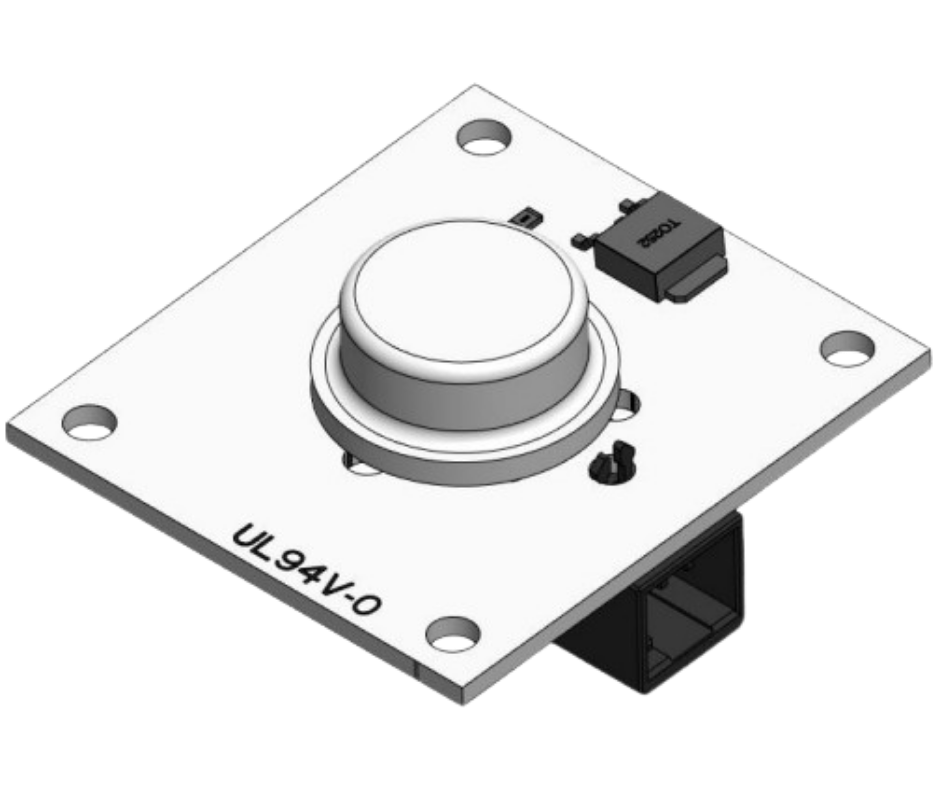

X-RAY Indicator Light

Product Code: DTC0120508026
Category: Medical Device Indicator Components

DuraTech’s X-RAY Indicator Light is designed to clearly signal X-ray and medical device operating status in clinical environments. Developed in collaboration with a leading global medical equipment manufacturer, this indicator light has completed design validation and testing and is now available as an official DuraTech catalog offering.

This 24V medical LED indicator delivers high-intensity orange illumination, long service life, and easy integration into medical systems worldwide.

Key Features

  • High-visibility orange LED illumination
  • High luminous intensity output
  • Long LED lifetime of up to 50,000 hours
  • Simple and secure installation
  • Compact, robust design suitable for medical environments

Product Advantages

  • Available as a standard DuraTech catalog product
  • Customization options available upon request
  • Flammability rating meets UL94-V0
  • Compliant with RoHS requirements
  • Meets IEC 62471 photobiological safety requirements

Applications

  • Medical device treatment status indication
  • X-ray and imaging system operation alerts
  • Visual notification during medical testing processes

X-RAY Indicator Light: Technical Specifications

Electrical Parameters

  • Nominal Voltage: 24.0 VDC
  • Input Voltage Range: 12–24 VDC
  • Input Current: 150 mA constant current

Photometric Parameters

  • Dominant Wavelength: 588–594 nm
  • Forward Voltage: 2.0–2.6 V
  • Forward Current: 200 mA
  • Reverse Current: 10 μA

Connector Information

  • Connector Model: P/N 1376135-1
  • Connector Type: Tyco D2100, 3-pin
  • Pinout:
    • Pin 1: +24 VDC
    • Pin 2: NC
    • Pin 3: GND

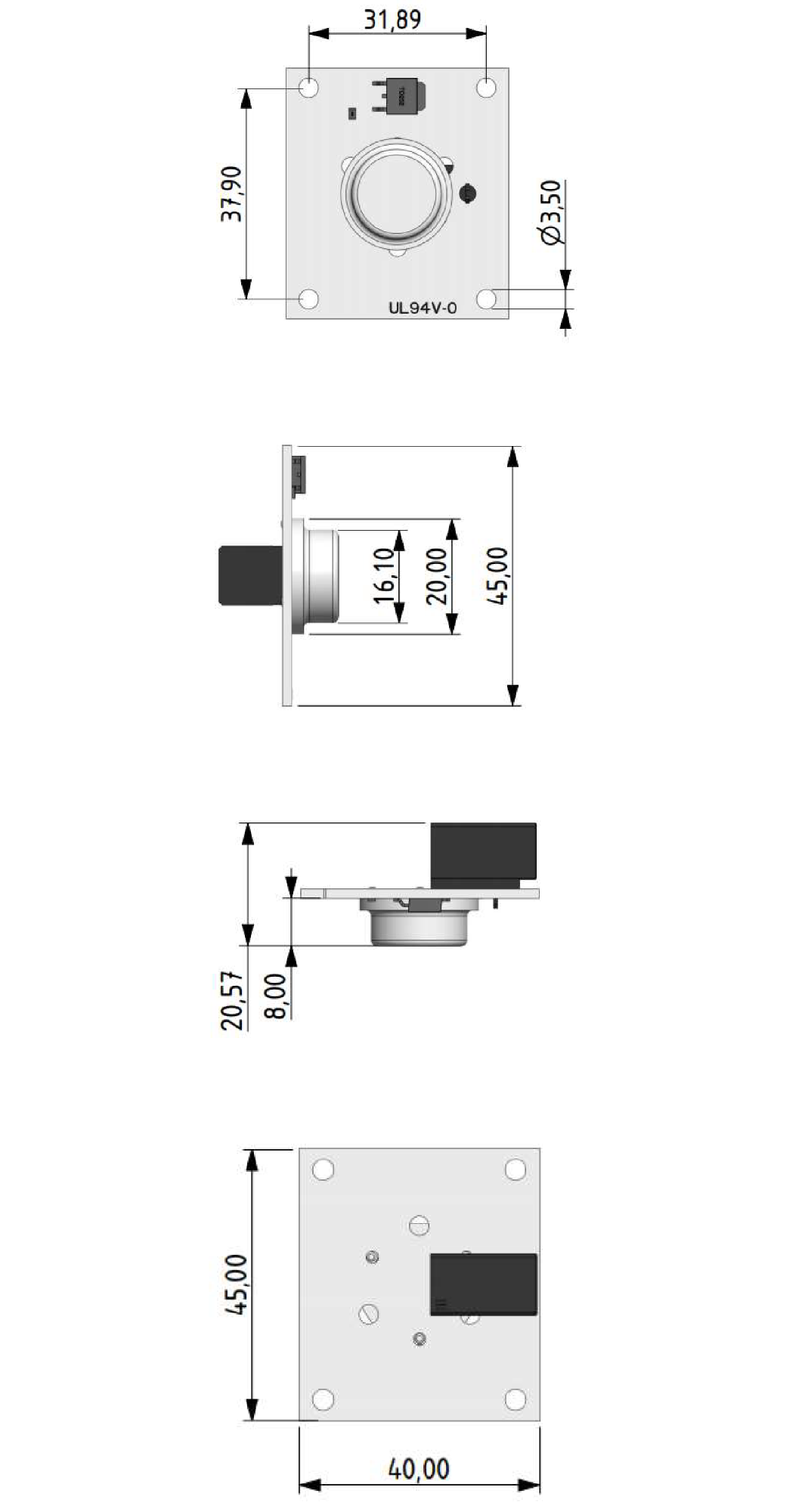

Dimensions

  • Length: 21 mm
  • Width: 40 mm
  • Height: 45 mm

Environmental Conditions

  • Operating Temperature: 0 to 40°C
  • Operating Humidity: 20% to 75% RH
  • Storage Temperature: -20 to 50°C
  • Storage Humidity: 5% to 95% RH

Ordering and Technical Inquiries

For pricing, availability, technical questions, or customization inquiries, please contact:

Grace Sun

grace.sun@duratech.com

Product specifications and test reports are available for download.

X-RAY Indicator Light Product Manual
