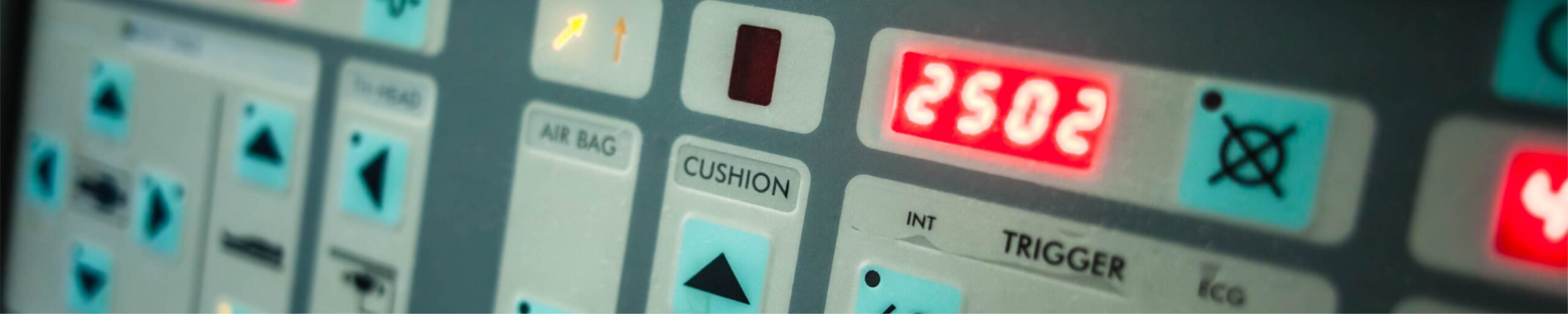

Custom Graphic Overlays
Custom Graphic Overlays Manufactured for OEM Devices
Rethinking graphic overlays for real world use
The best high performance graphic overlay looks seamless on the surface — but it reflects a precise stack of engineering decisions beneath it.
At DuraTech, graphic overlays function as true HMI components, whether used in a medical device, appliance or electronic system. It’s the entrypoint to a integrated system that supports reliable, long-term performance.

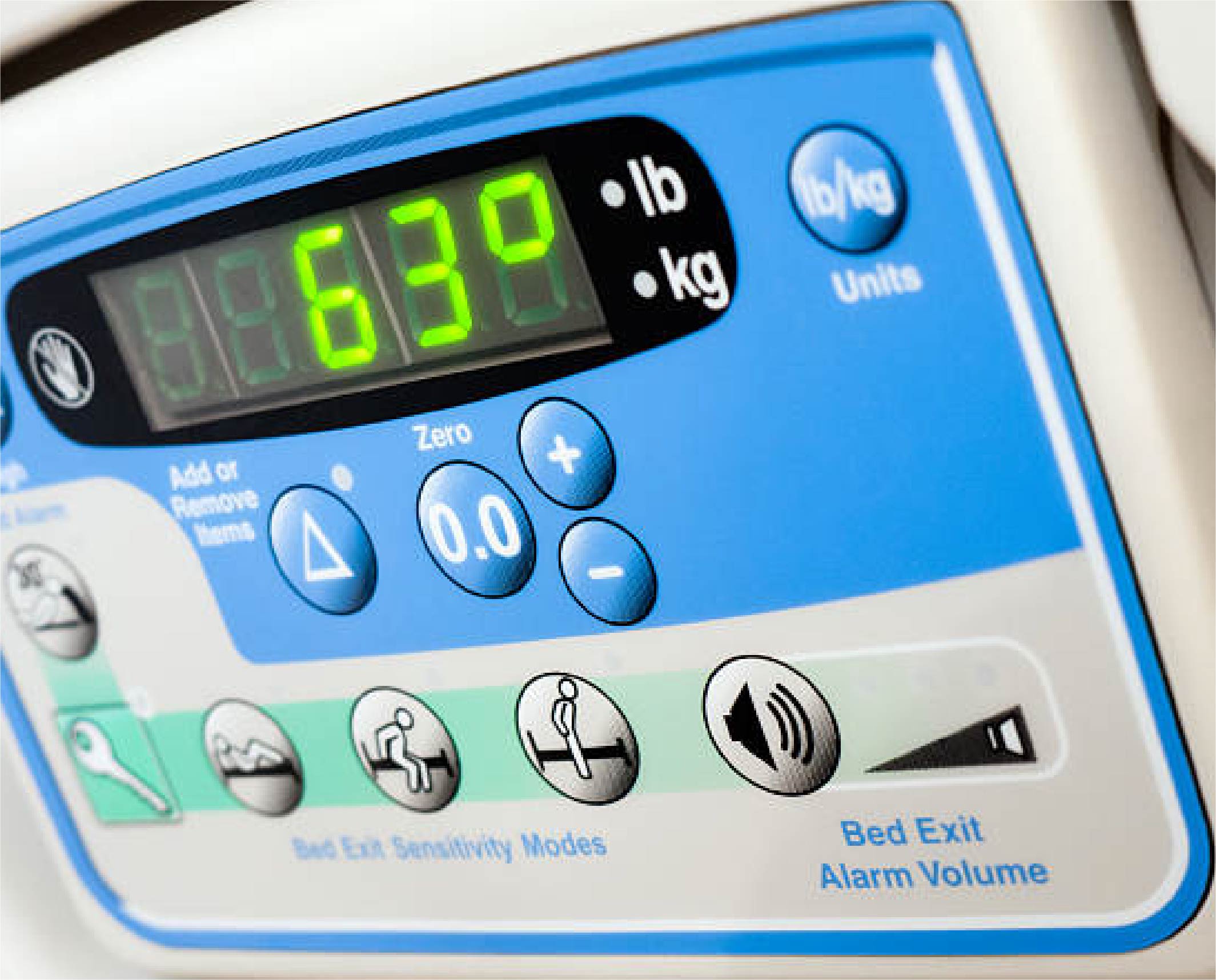

What is a graphic overlay?
A graphic overlay provides the visual interface for your device’s controls.

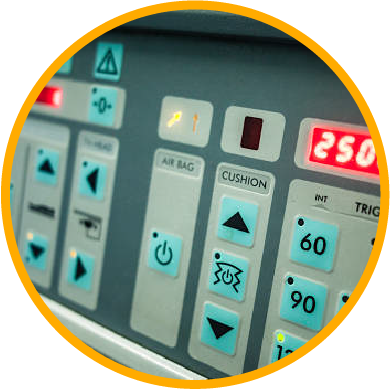

Function & design: It uses color, graphics, text and textures to guide the user to the correct inputs.

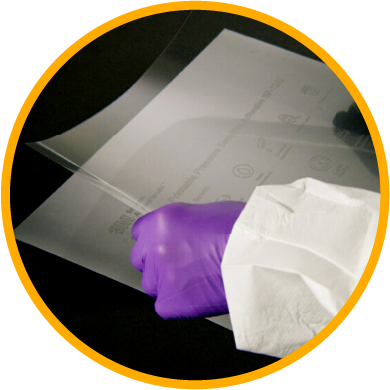

Graphic overlays in context: It is the top layer of a printed user interface, such as a membrane switch or in-mold structural electronics (IMSE).

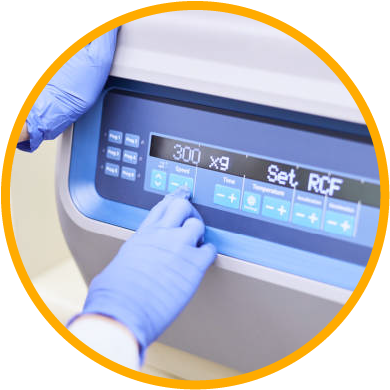

Performance: It can provides a durable surface that protects underlying circuits.

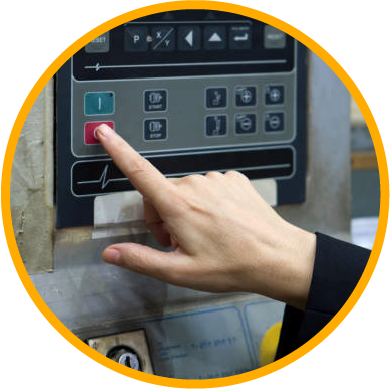

User experience: The graphic overlay is the entry point for the end user — the bridge between intention and activation.
A typical overlay stack-up
Each overlay is developed through material stack-up design, where films, inks, diffusion layers and adhesives come together as a unified system.

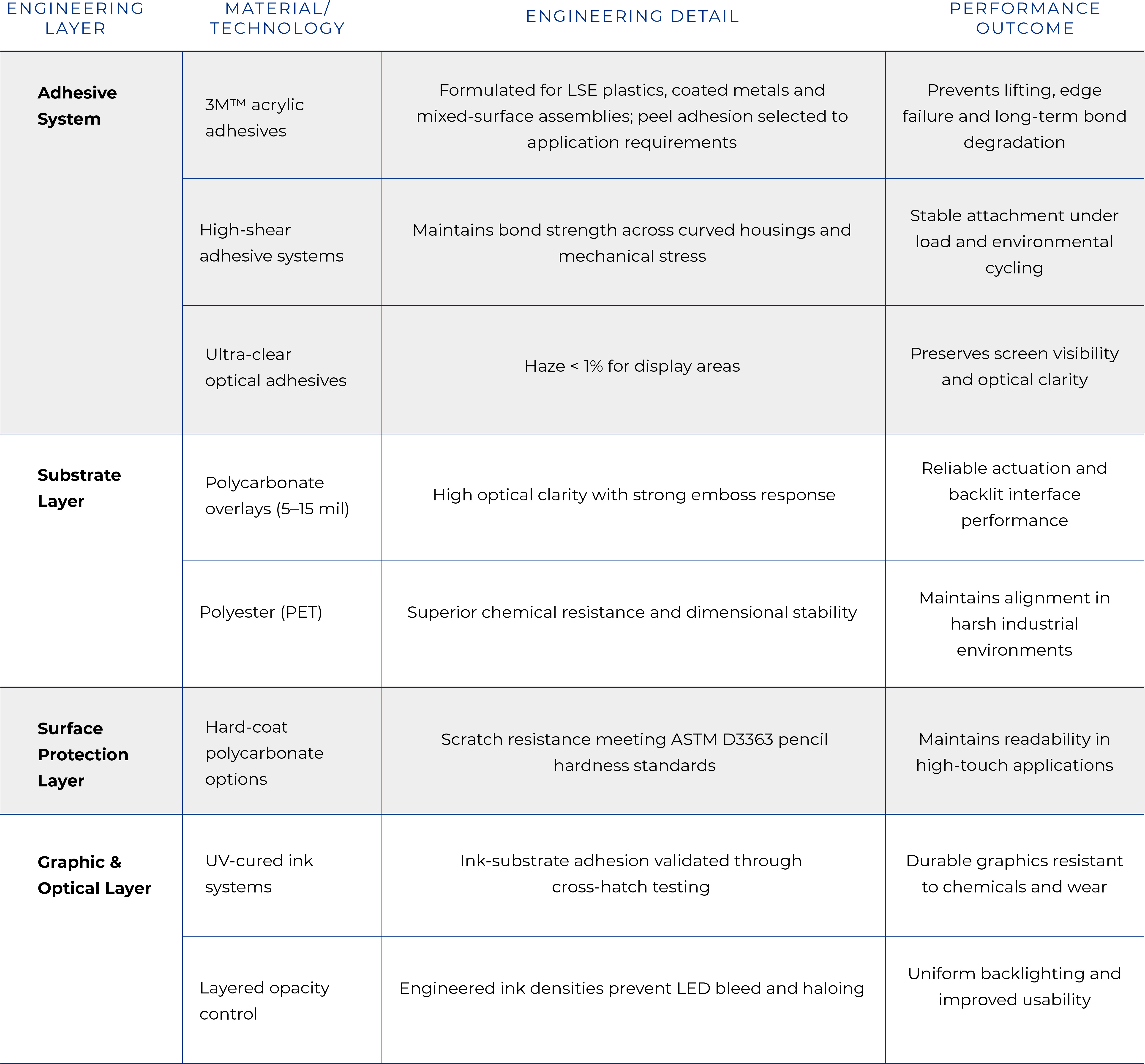

Engineering decisions across the overlay stack
Precision & tolerances: Visual and functional accuracy
To ensure the graphic overlay integrates correctly with underlying mechanics, DuraTech maintains tight tolerance and registration control throughout printing and converting processes.
- Close-tolerance die cutting and laser cutting that reduce risks such as misregistration and delamination
- High-precision print registration maintained within ±0.005–0.010″
- Burr-free edges that prevent raised material and support a clean, precise assembly fit
- Dimensional repeatability maintained across production batches
- Controlled color consistency to ensure visual uniformity from part to part
- Accurate cutout-to-print alignment that helps prevent light bleed around icons and windows
- Precise alignment between overlay features and underlying switches and sensors
Application environments for graphic overlays
Graphic overlays must perform reliably under a wide range of operating conditions. DuraTech designs interface components suited to the operating environment.
- High-touch interfaces requiring abrasion resistance and long cycle life
- Repeated exposure to cleaning agents, chemicals and disinfectants
- Outdoor environments with UV exposure, moisture and temperature variation
- Precision assemblies requiring accurate alignment with backlighting and displays
- Medical applications subject to sterilization and frequent sanitation
- Appliance interfaces exposed to heat, humidity, grease and repeated cleaning
- Industrial equipment exposed to vibration, impact and mechanical stress
DuraTech: A partner in reliable human-machine interfaces
The graphic overlay is where users interact with the machine — and where brand experience takes shape. DuraTech approaches every project with this understanding.
Collaborate with our team early to reduce risk during new product introduction and help prevent costly redesigns. By working alongside your team from the start, DuraTech supports predictable performance from prototype through production.
Talk with a DuraTech engineer about your overlay requirements.
